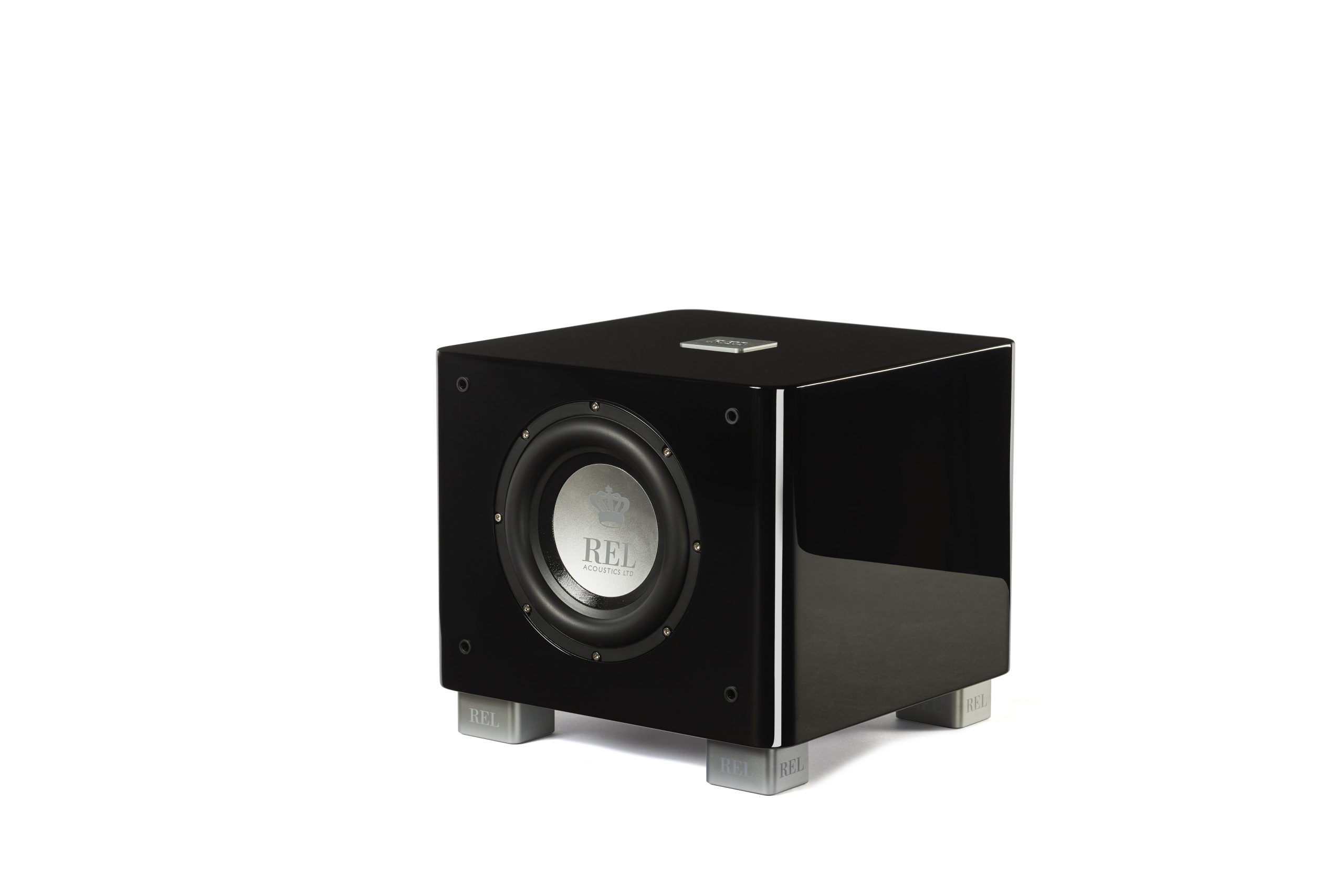

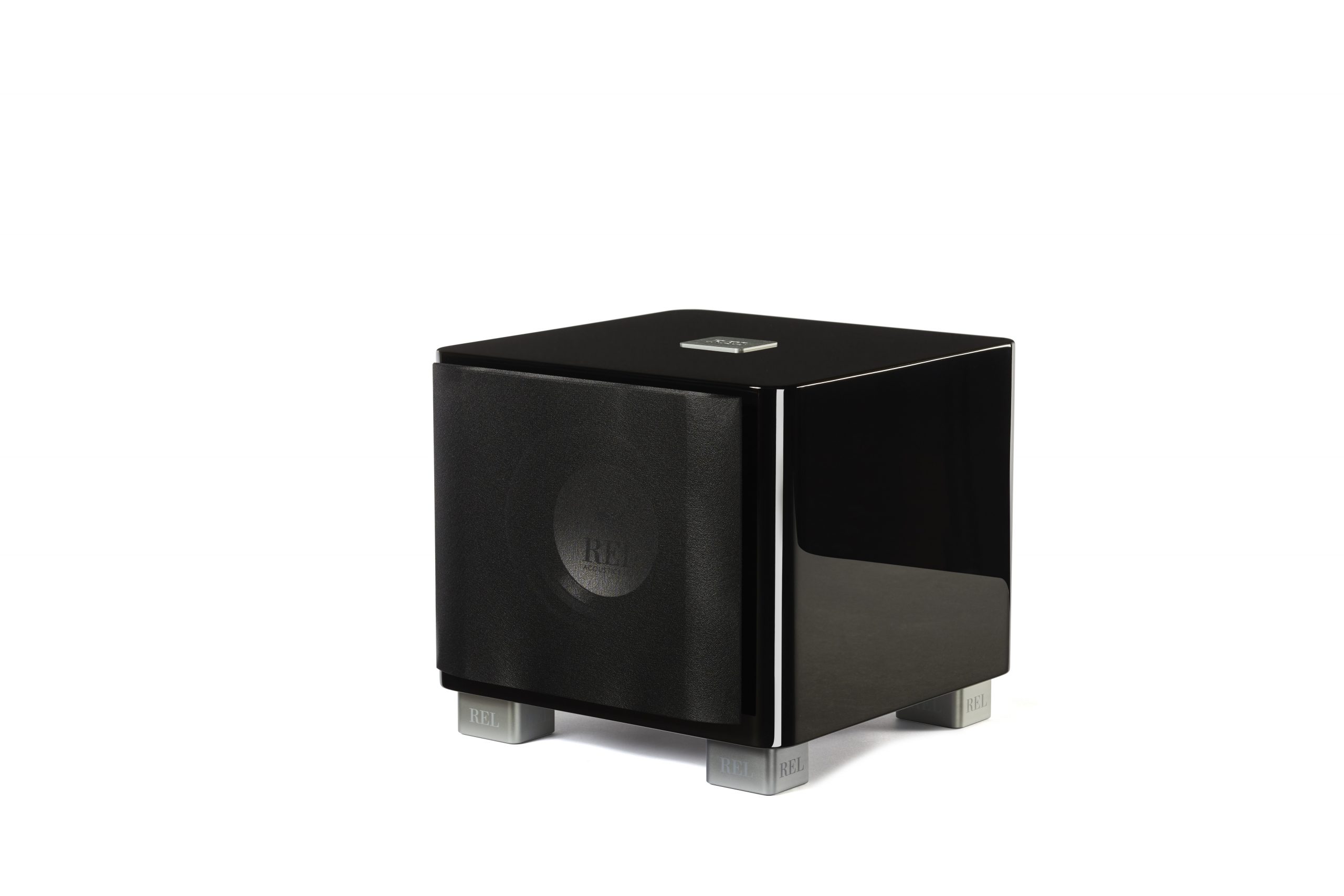

Rel T/7x Subwoofer


Price range: £999.00 through £1,998.00

Loading...

Description

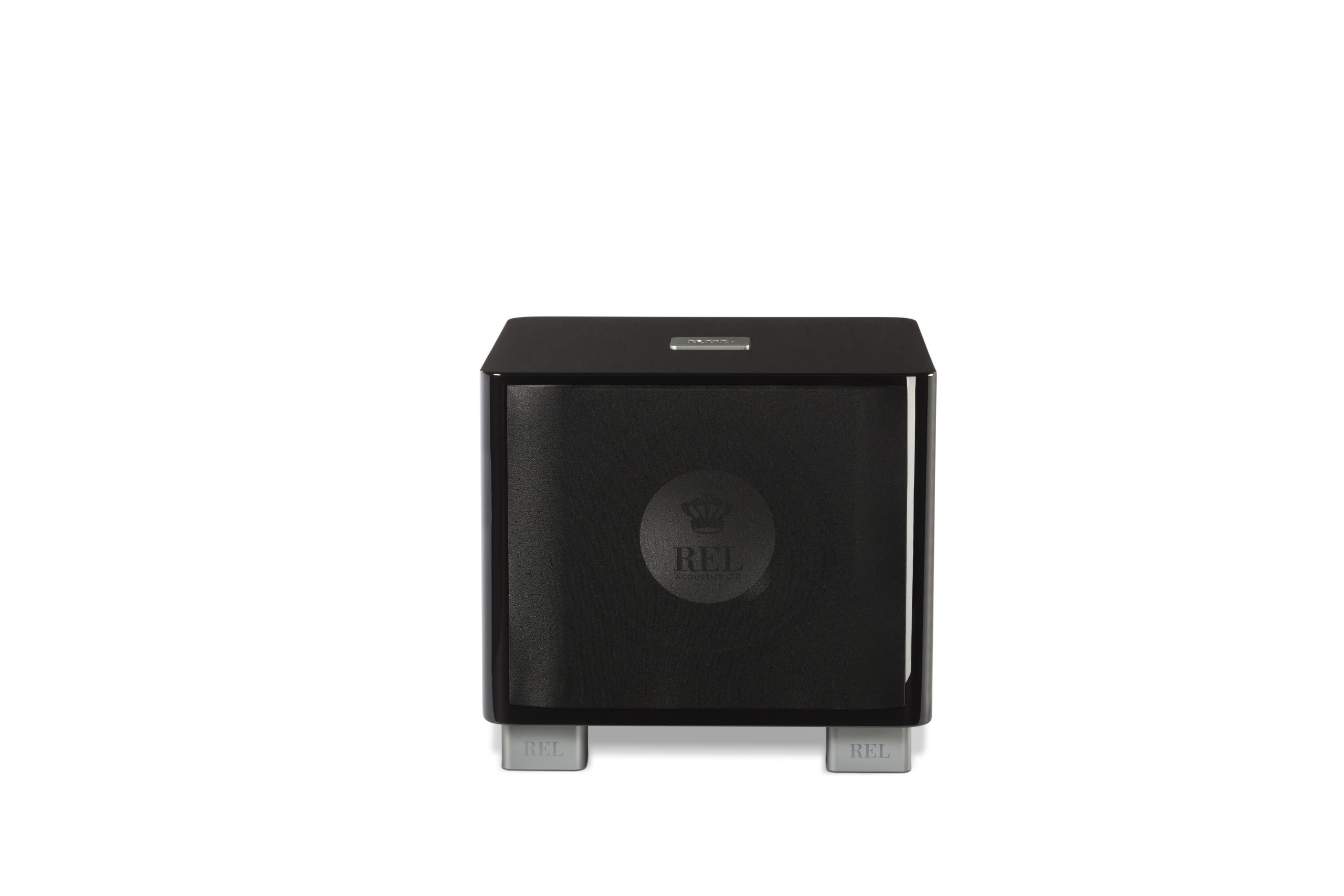

Rel T/7x Subwoofer

REL’s legendary High Level Input connection and fast filters are a significant chapter in the REL story. Connecting via the speaker outputs of your amplifier without drawing any power from it may seem like magic, but the real magic lies in the way the sound takes on a natural character and blends seamlessly with your speakers. Unique tuning and special limiters means the Rel T/7x Subwoofer sounds fresher, faster and more dynamic than before.

T/7x is, without reservation, one of the most-balanced RELs of all time. In order to achieve perfect balance, a sub must weigh speed against heft, while ensuring true extension-depth-and do so in a physically harmonious package. T/7x manages to make it all seem easy. Quick and delicate for a perfect blend, it can pound out exceptionally deep, tuneful bass that belies its size and plays louder than most will ever require.

Designed to be Better

Many don’t realize the intense connection between performance and design at REL. Performance is everything to Rel and it leads to physical design solutions. Thus it is, that their engineers, in recognizing the need for greater cabinet volume to achieve the goals of greater fluidity and power, turn to the designer. He works dimensions to fool the eye into seeing a smaller, more compact footprint, even though cabinet volume increases. Using gently rounded corner radii that allows the eye to flow over and see less visual mass. The result is both modern and clean with no unnecessary adornment.

REL_Lifestyle T7x

Drive On

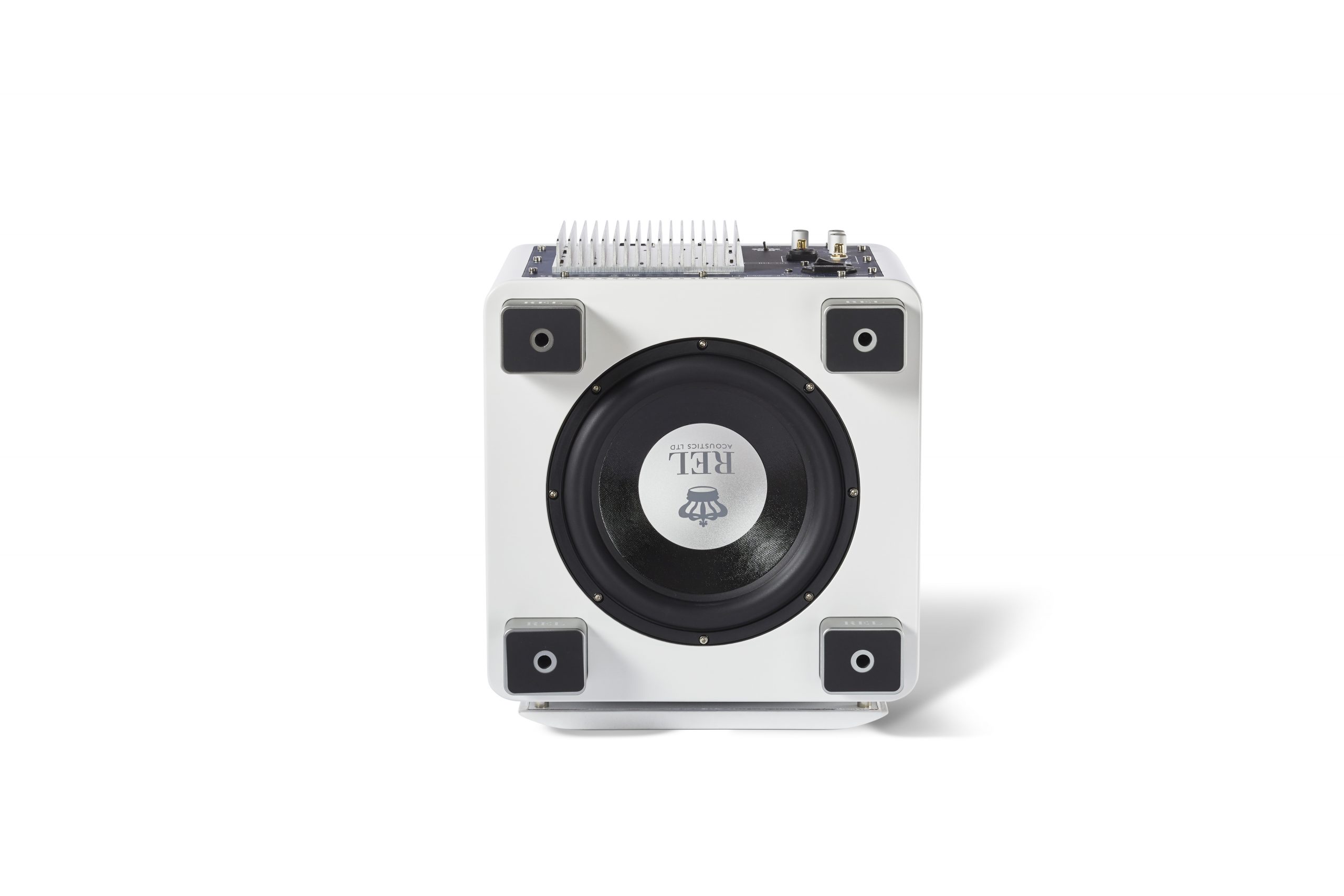

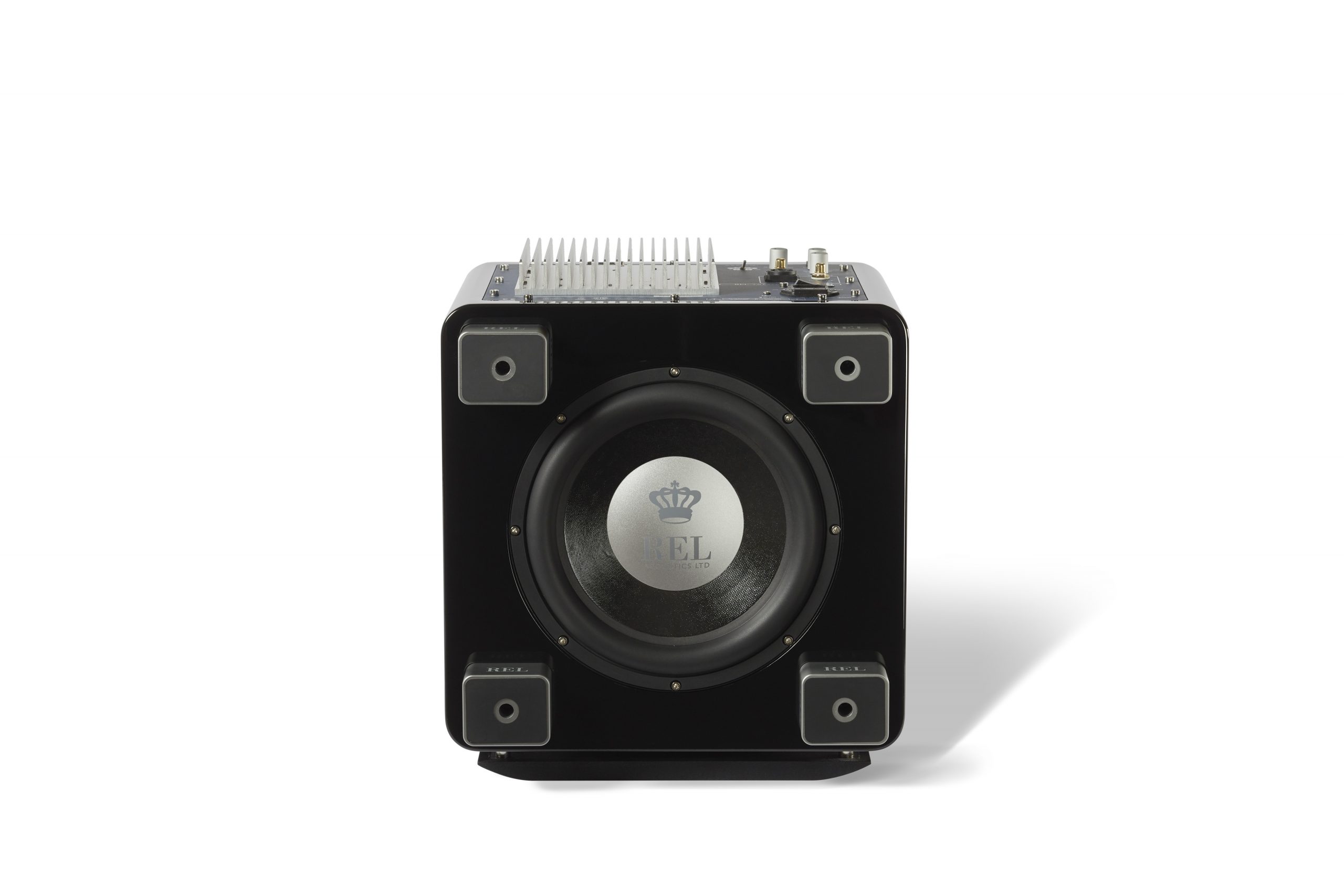

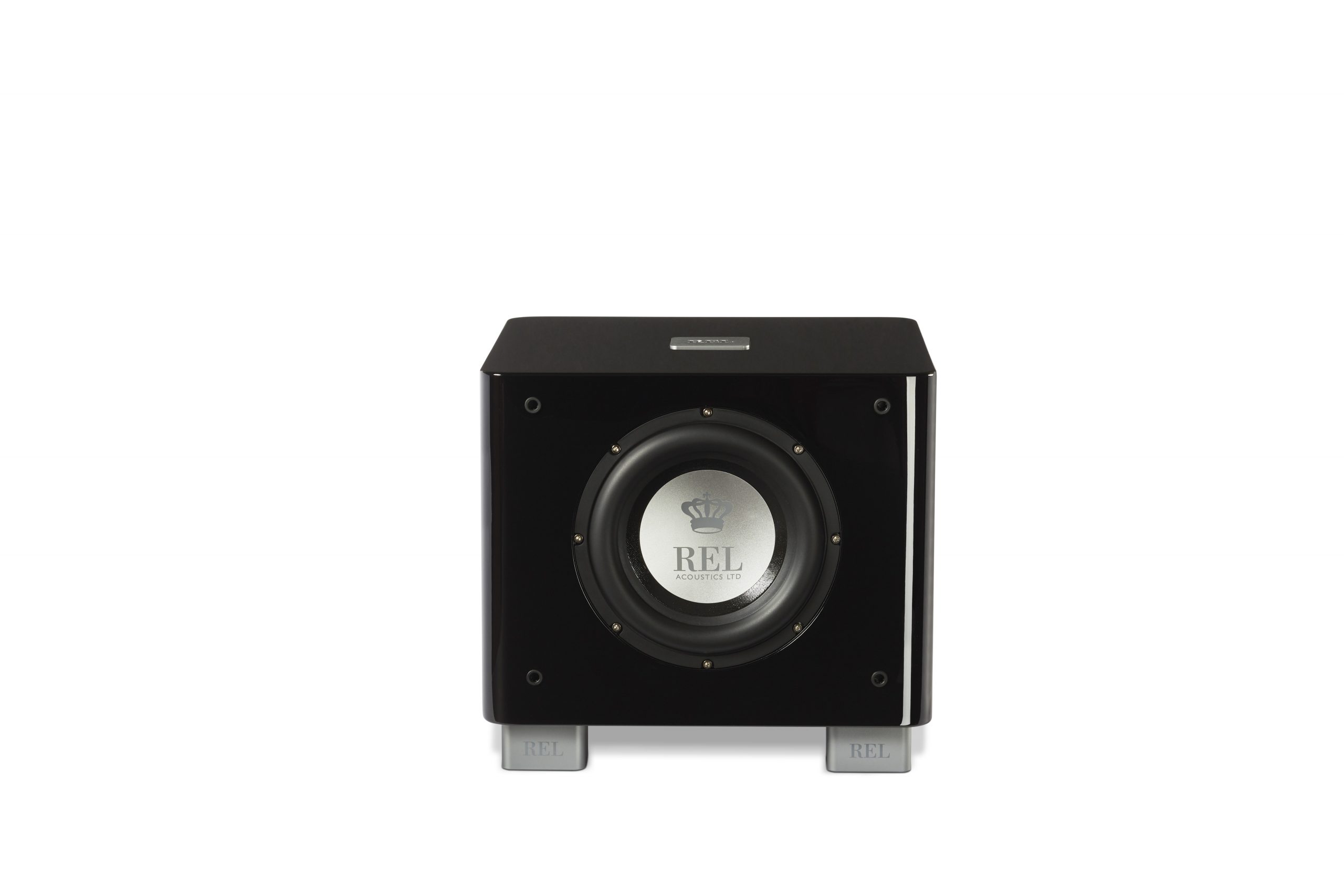

The 8” long throw active and 10” passive drivers are where T/7x derives its incredible speed and clean finish. A thorough revision of critical suspension components are responsible for the agility and suppleness of T/7x. The T/7x sounds louder and more powerful is expected, but few would predict it also is faster, more reactive and transparent than our prior generation, itself a paragon of virtue. Stiffer suspensions better suited to advanced duty mean not only can each driver trace minute details, but also travel farther and handle more power.

Tried and True Amplifiers

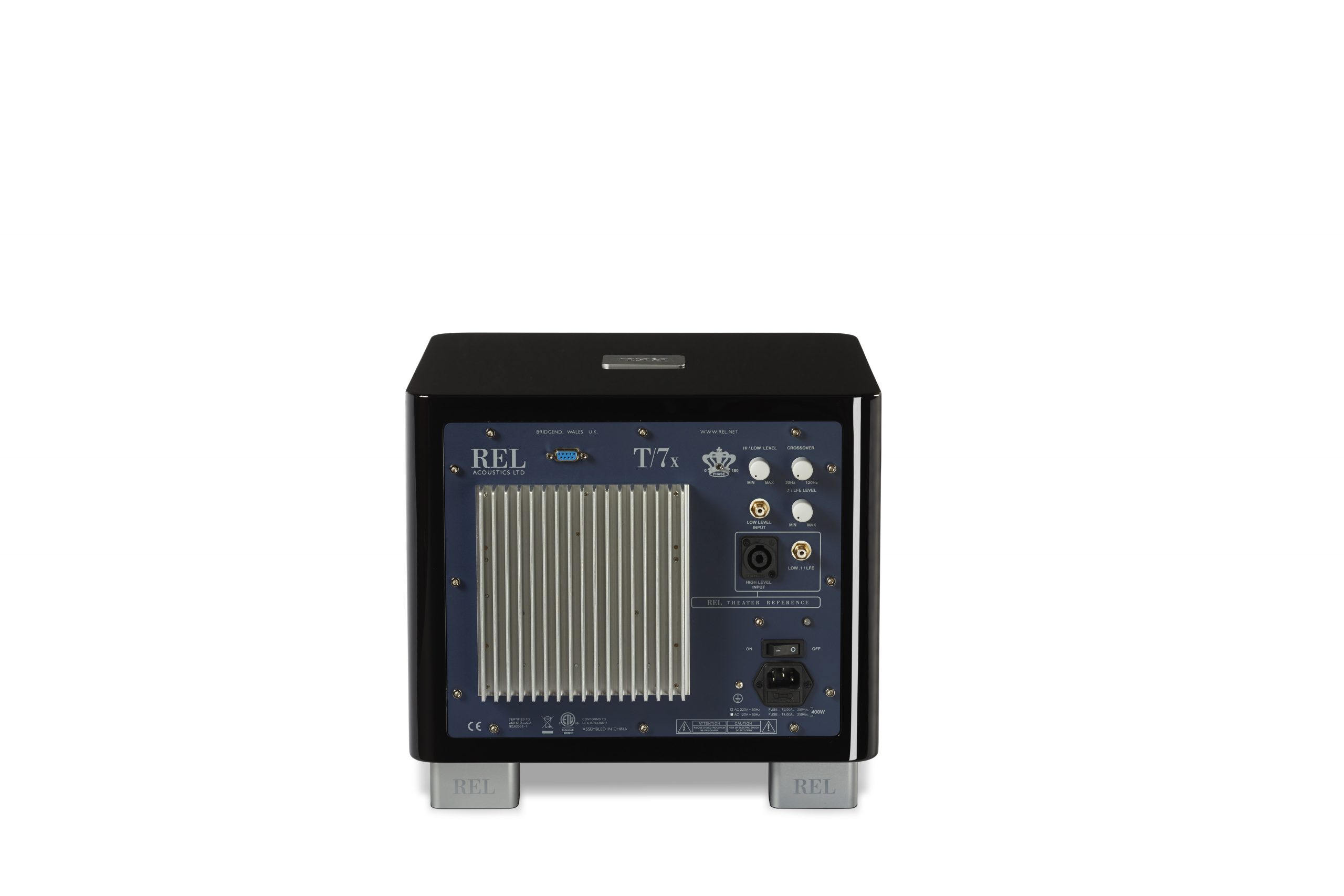

Rel have retained their signature Class A/B amplifiers used in every generation of Serie T since 2006. Reliability is the key to happy ownership and with some 200,000 and counting of this range leading long happy lives, Serie T/x owners can feel certain of REL’s standard setting reliability. The powerful 200-watt mosfet amplifier used in the T/7x remains an icon of sound and reliability with huge reserves of current. Massive power supplies are used and small upgrades are found everywhere. New driver mosfets that open up performance and transparency and new methods for securing the toroidal transformers mean better performance and superior reliability. The best gets better.

Standby Mode switch is only included on 220V units.

Zero Compression Wireless

At REL, they’ve developed a sterling reputation for building the finest sounding, fastest wireless systems available in the industry. REL never rely upon digital compression as it results in thin, lifeless sound. Instead, they have perfected an (optional) Arrow™ Wireless system; so fast and dynamic they’re comfortable encouraging the use of wireless on one channel of a pair of RELs while the other channel may be connected hardwired with cable.



About Rel Acoustics

wales flag

REL Acoustic is a major subwoofer manufacturing company in Bridgend, Wales that was founded by Richard Edmund Lord in 1990. REL subwoofers are some of the best on the market with high-end performance, versatility and an efficient customer support system. Richard Edmund Lord aimed to introduce some of the best audio equipment available and, within a few years, REL had built a strong portfolio that made them stand out over other similar products on the market.

Additional information

Technical Specification

Physical characteristics
Weight
17.5 kg
Dimensions (HxWxD)
320 x 356 x 363 mm

Type
Front-firing active driver, down-firing passive

Active Driver Size & Material
8 in. (200mm) long-throw, FibreAlloy™ cone, inverted alloy centre cap, steel chassis

Passive Radiator Size & Material
10 in. (250mm) long-throw, FibreAlloy™ cone, inverted alloy centre cap, steel chassis

Low Frequency Extension
-6dB at 30 Hz Low Frequency

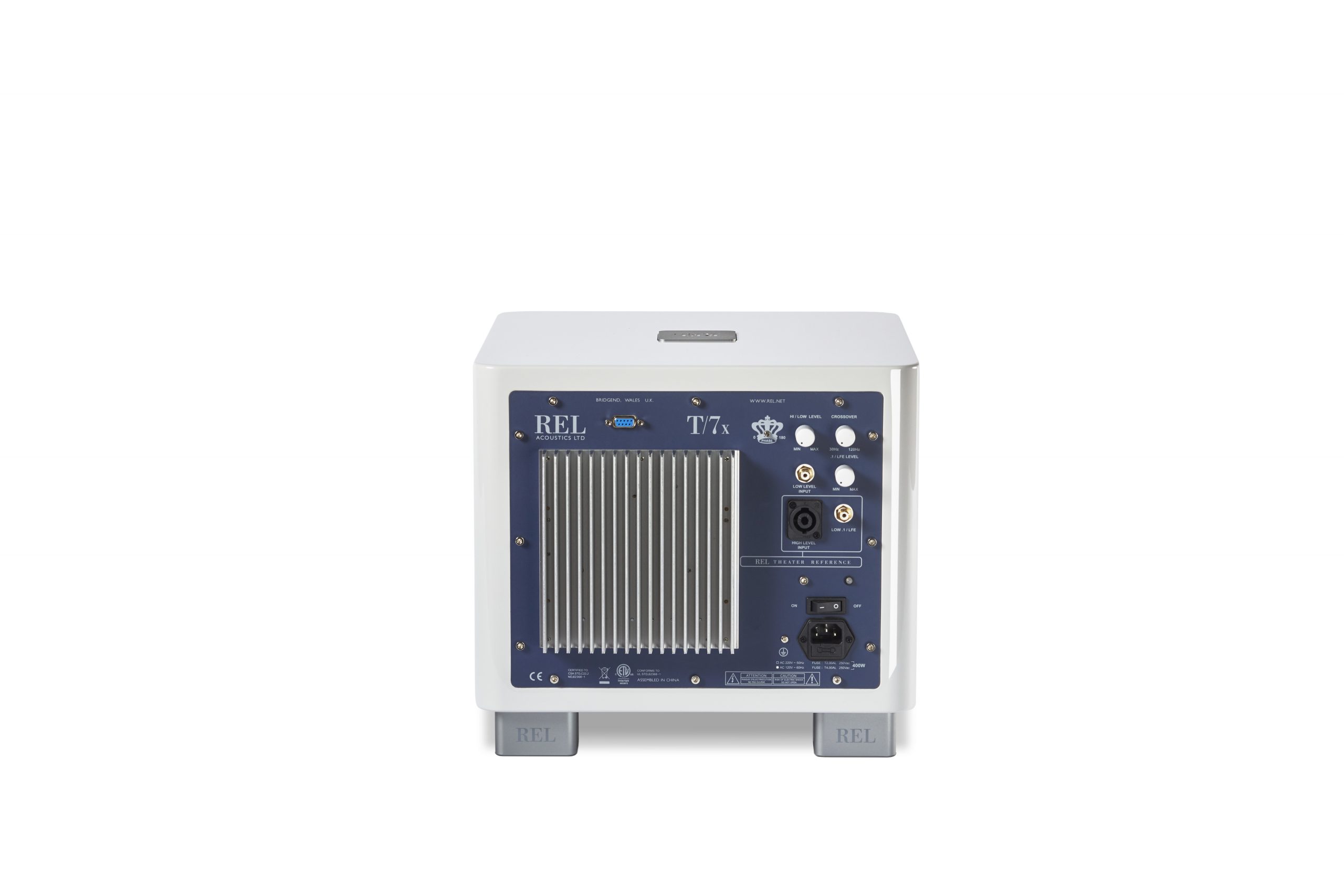

Input Connectors
High Level Neutrik Speakon, Low Level (1) RCA, (1) LFE RCA

Output Connectors
N/A

Power Output
200 Watts (RMS)

Amplifier Type
Class A/B

Wireless Capability
REL Arrow (sold separately)

Dual Parametric Filter
N/A

Finish
Piano Black Lacquer, Gloss White Lacquer 5 coats

Protection System
Fully Electronic Set Safe
Yes

D.C. Fault
Yes

Output Short
Yes

Mains Input Voltage
220-240 volts, 110-120 volts for certain markets

Colour

Piano Black, Gloss White

Setup

One Subwoofer, Stereo Pair

What's in the box

Mains Lead
Neutrik Speakon (10 Meters Nominal)
User Manual

Warranty

3 Year Warranty (via registration)
